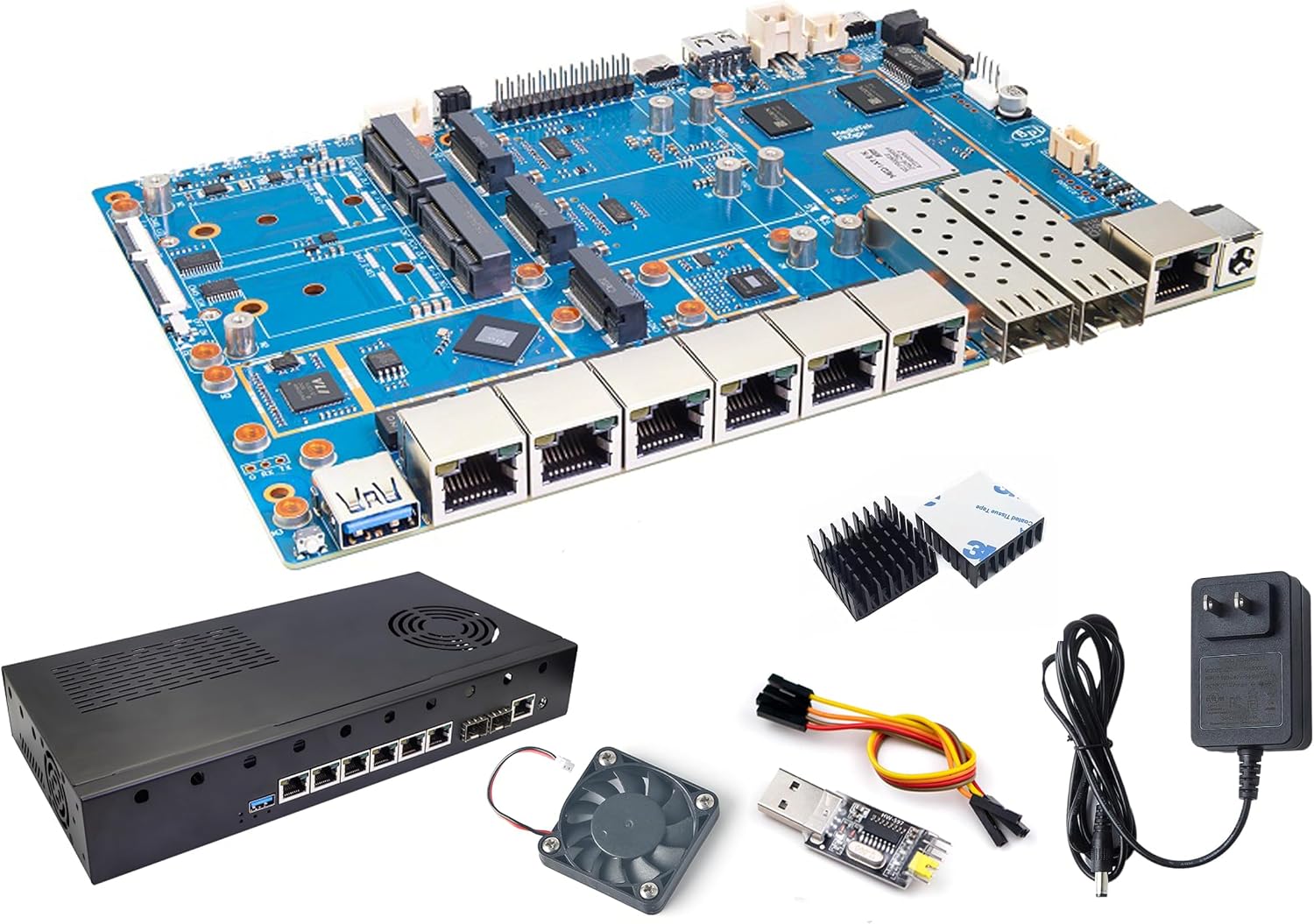

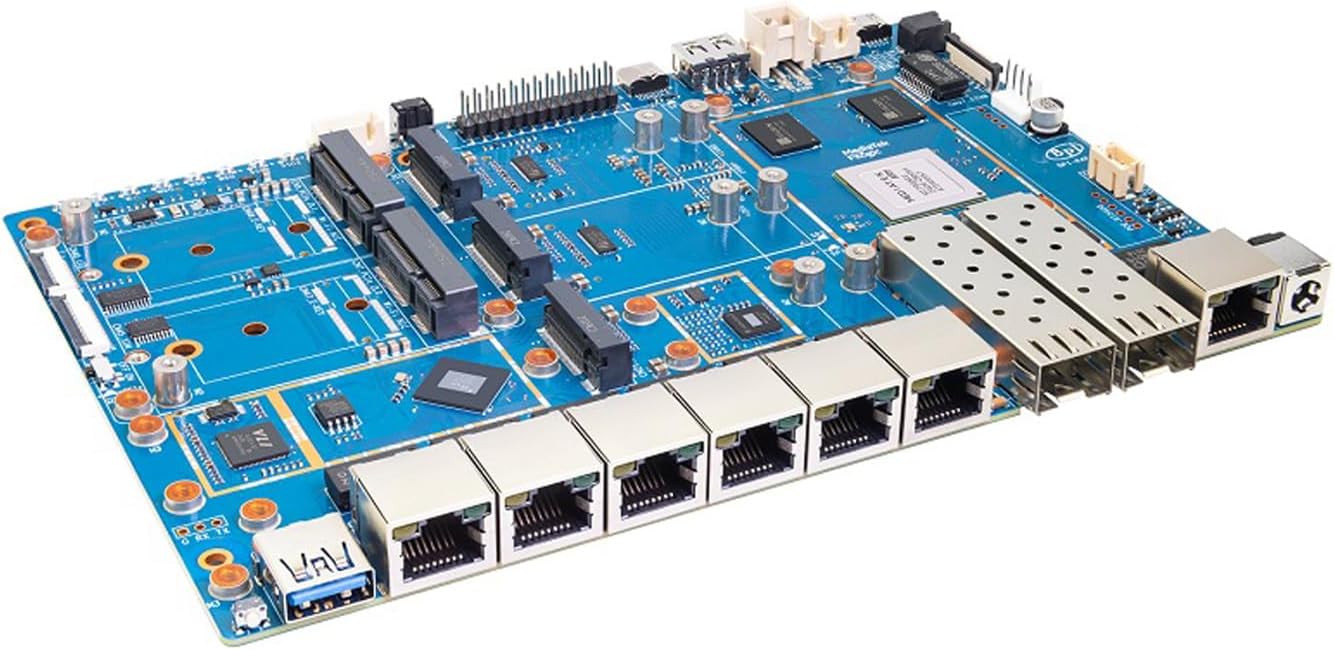

Banana Pi BPI-R4 Pro 8X/4E WiFi 7 Wireless Dual-Band WiFi Router Board OpenWRT, MediaTek MT7988A30K DMIPS SoC - 2X 10GbE SFP&RJ45, 4X 2.5GbE LAN for NAS Smart Home Gateway (Bundle2, 8X)

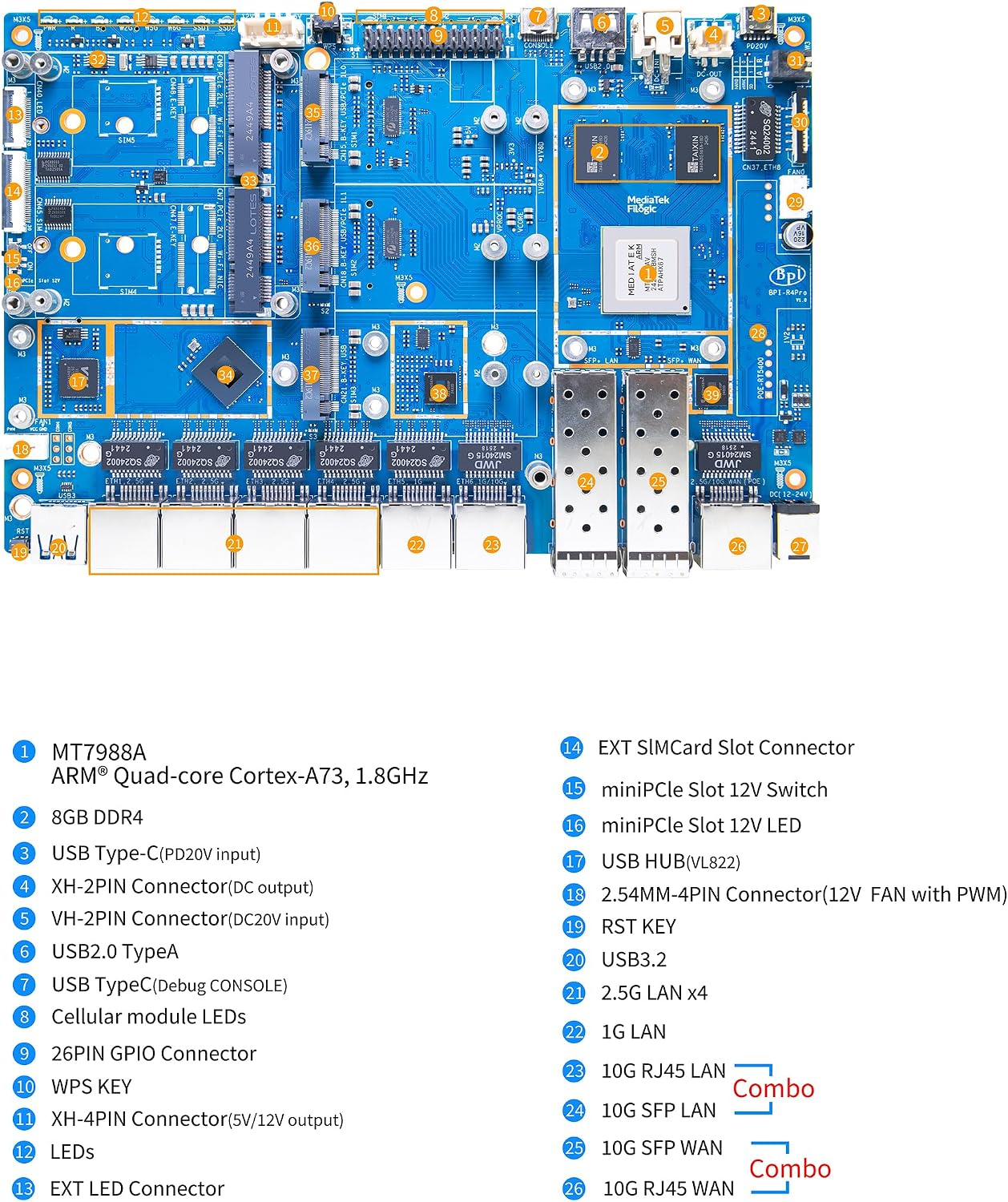

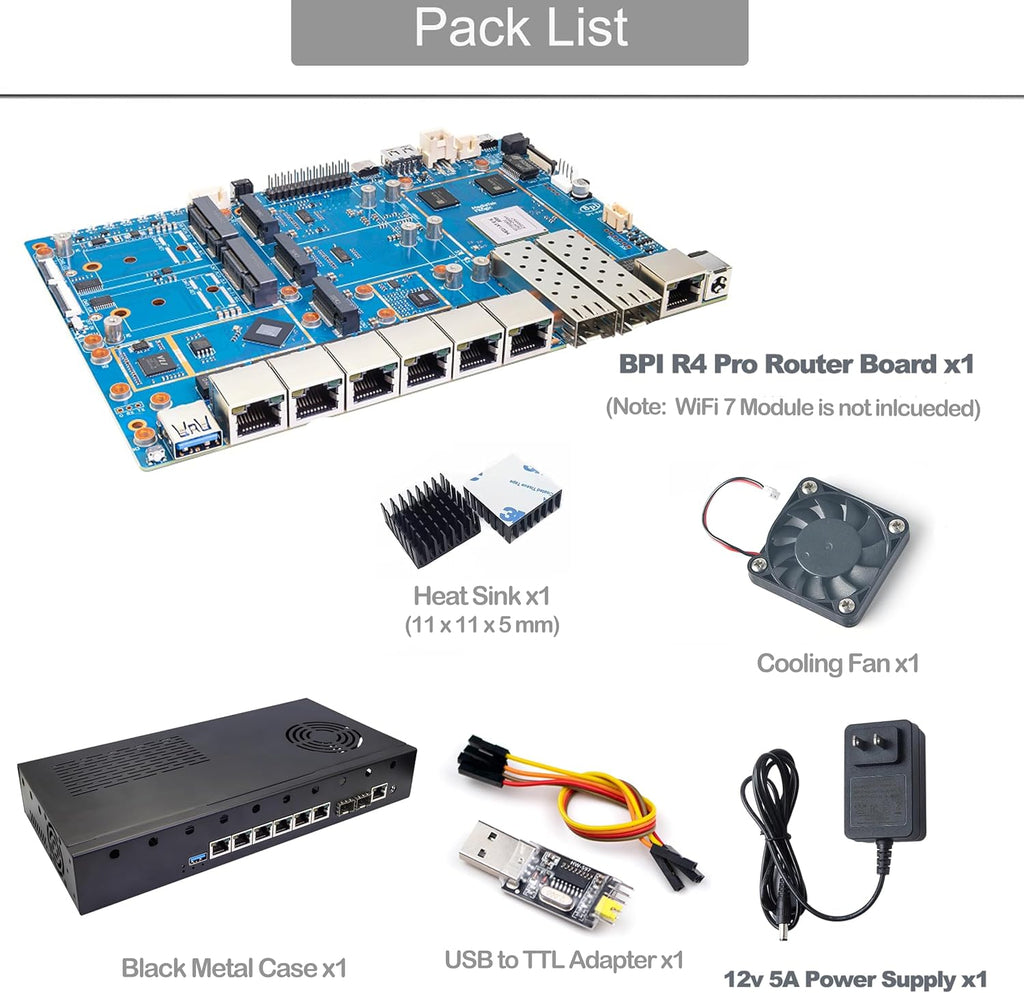

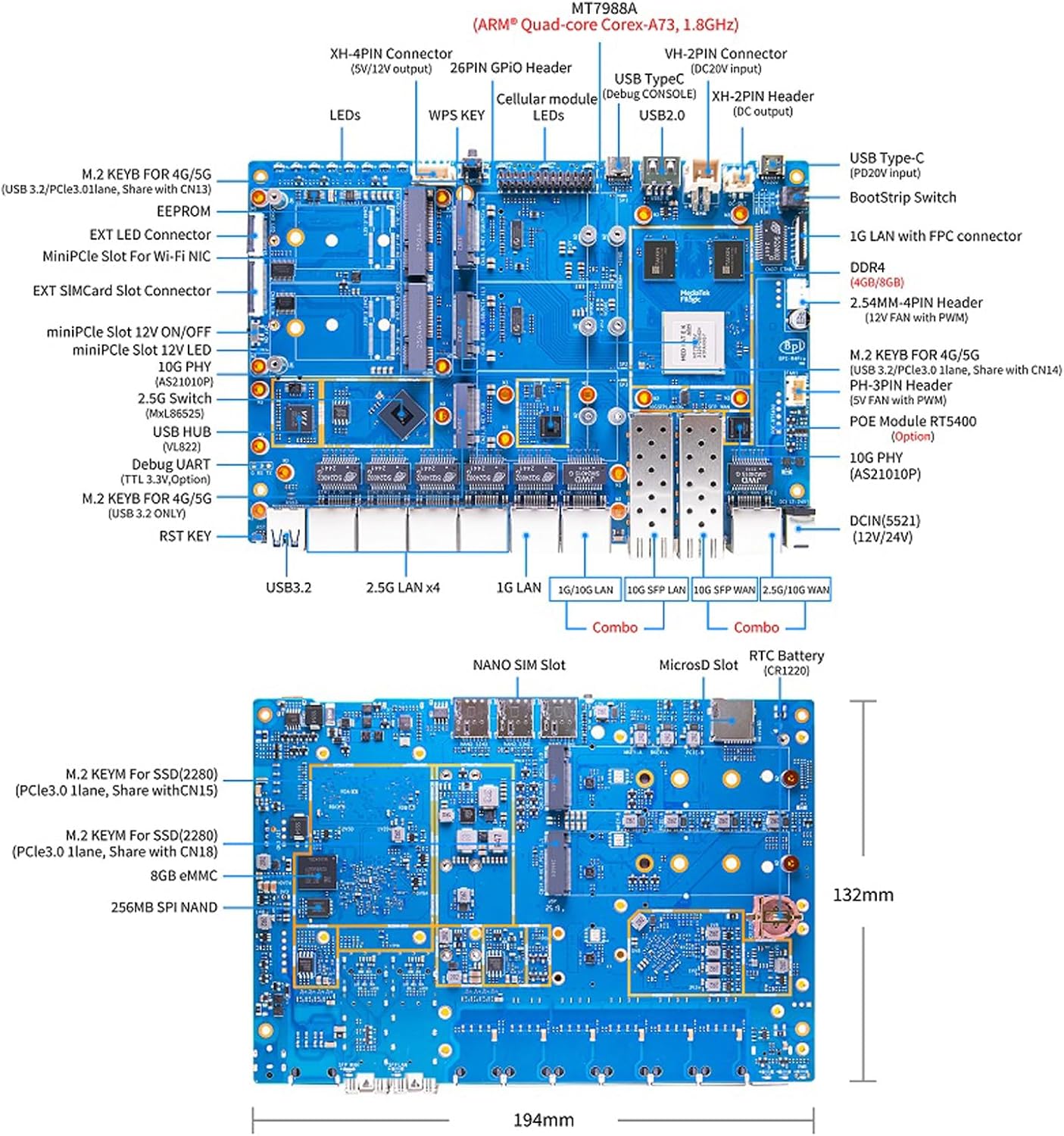

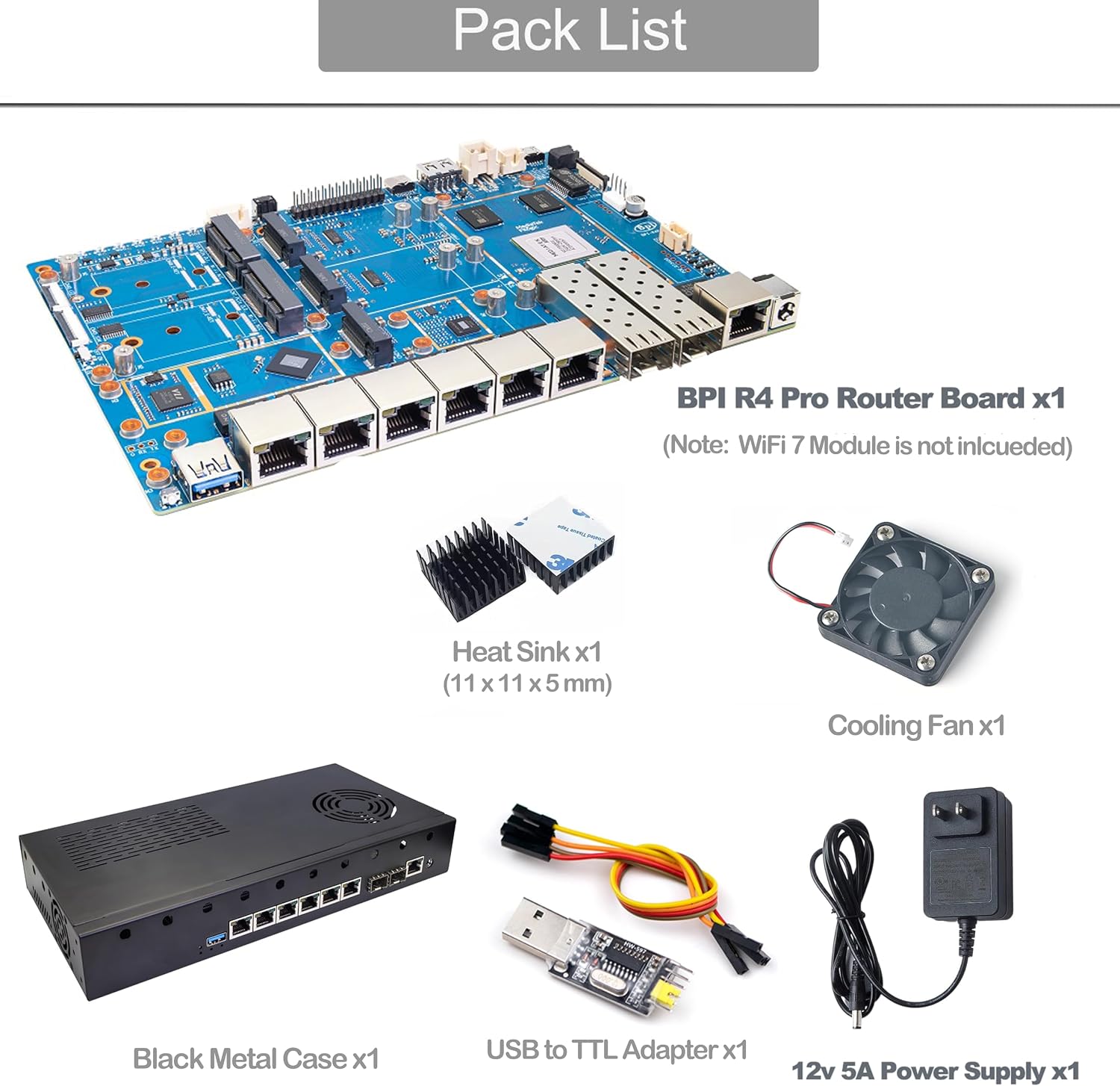

-Specification-CPU: MediaTek MT7988A (Filogic 880) Quad-Core Arm Corex-A73,1.8GHz ProcessorSDRAM memory: 4E 4G/ 8X 8GB DDR4 memoryOnboard Storage: 8GB eMMC, 256MB SPI-NAND Flash, support MicroSD (TF) card holderGPIO: 26 Pin GPIO - 2x13 PIN Header for expanding application, supports UART, I2C, SPI, PWM, I2S.Network Interface: 4 Port 10/100/1000Mbps 2.5G RJ45 LAN Gigabit Ethernet Portmini PCIE: 2x miniPCIe PCIe3.0 2lane interfaces supporting Wi-Fi 7 NIC (Network Interface Card)M.2 interface:2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD (PCIe signal can switch to M.2 B-KEY slot)3x M.2 B-KEY slots with USB3.2 for 5G Module, supports 3Way 5G modules via USB 3.2 interfaceBPI-R4 supports M.2 USB Interface Quectel 4G LTE EM25, RM500U-CN & RM520N-GL 5G Modules.USB: 1x USB TypeC Debug Buttons: Reset button, WPS button, boot switch buttonLeds: Power status Led and RJ45 LedDC Power: 12V/5.2A or 19V 3.2ADimension: 100.5x148x20mmWeight: 250g-Package Content-Banana Pi R4 Pro 8X/4E Router Board x1-Technical Support-

Additional details

• Color : Bundle2

Features & Specs

• Antenna Location : Business, Gaming, Home
• Antenna Type : Internal
• Compatible Devices : Gaming Console, Personal Computer, Tablet
• Connectivity Protocol : Wi-Fi 7
• Connectivity Technology : Ethernet, LTE, Optical Fiber Port, USB, Wi-Fi
• Data Transfer Rate : 10 Gigabits Per Second
• Frequency : 2.4 GHz
• Frequency Band Class : Tri-Band
• Is Modem Compatible : Yes
• LAN Port Bandwidth : 10/100/1000 Mbps
• Maximum Upstream Data Transfer Rate : 10000 Megabits Per Second
• Operating System : OpenWRT
• Other Special Features of the Product : Access Point Mode, Guest Mode, Internet Security, QoS
• RAM Memory Installed : 8 GB
• Security Protocol : WPA-PSK, WPA2-PSK
• Voltage : 12 Volts (DC)
• Wi-Fi Generation : Wi-Fi 7
• Wireless Compability : 802.11.be, 802.11ax

Item details

• ASIN : B0FWCQ3TH4
• Brand : WayPonDEV
• Built-In Media : Show as picture
• Manufacturer : Banana Pi
• Mfr Part Number : BPI-R4 Pro
• Model Name : BPI-R4 Pro 8X/4E WiFi7 Router Board OpenWRT
• Model Number : BPI-R4 Pro 8X/4E Router Board
• Warranty Description : WayPonDEV Return Policy: You may return any new computer purchased from WayPonDEV that is 'dead on arrival', arrives damaged, or is still in unopened boxes for the refund within 30 days of purchase. WayPonDEV reserves the right to return ' Dead on Arrival' and charge a customer fee equal to 15 percent of the product retail price if the customer misrepresents the condition of the product. For any returned computer that is damaged due to customer misuse, is missing parts, or is in an unsellable condition due to customer intervention, the customer will be charged a higher restocking fee based on the condition of the product. WayPonDEV will not accept returns of desktop or notebook computers more than 30 days after receipt of the shipment. New, used, and refurbished products purchased from Marketplace Vendors are subject to each Vendor's return policy.

Measurements

• Item Weight : 250 Grams
